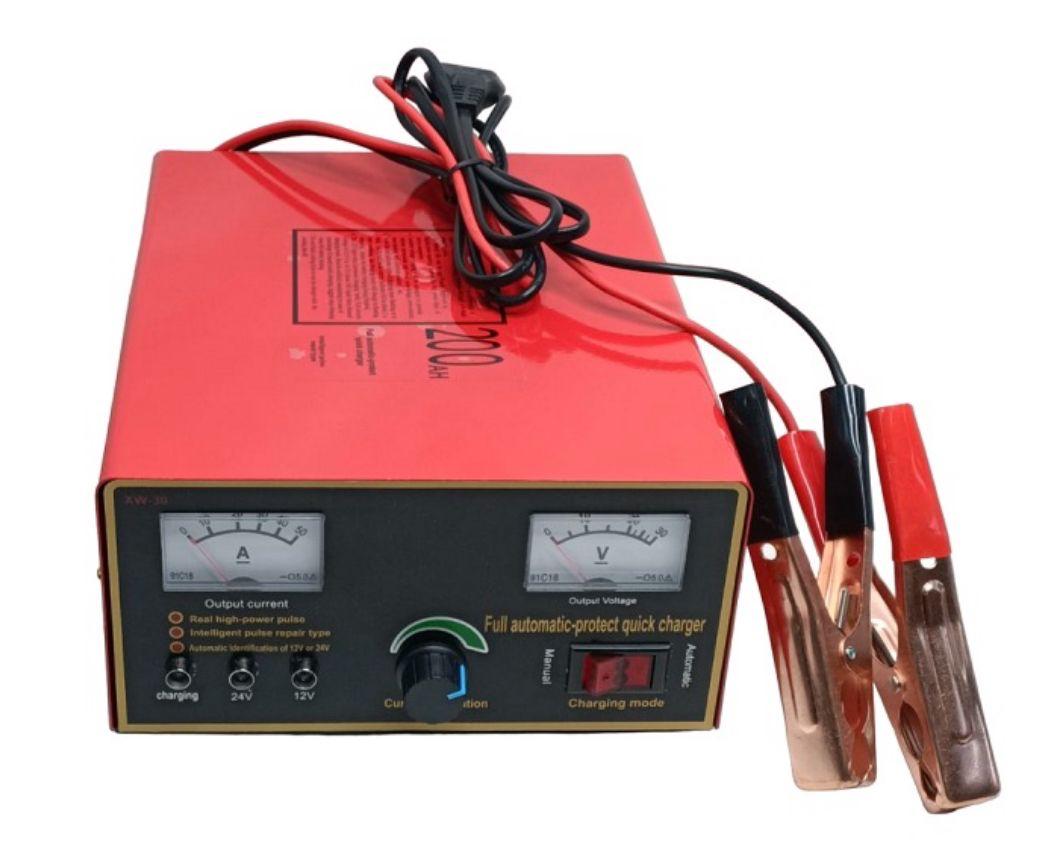

XM-30 Full Automatic Protect Quick battery charger
$70.00
The XM-30 Full Automatic Protect Quick Battery Charger is a versatile, heavy-duty smart charger designed for automotive, marine, and industrial applications. It is frequently used for high-capacity systems like trucks, bakkies, forklifts, and large SUV
Key Features
-
4-Stage Smart Charging: Uses a microprocessor to cycle through four distinct phases:
-
Constant Current (Fast Charge): Rapidly replenishes energy.
-
Constant Voltage: Safely brings the battery to 100%.
-
Trickle/Float Mode: Maintains full charge without boiling the battery.
-
Automatic Shut-Off: Disconnects once charging is complete to prevent overcharging.
-
-
Multi-Voltage Compatibility: Typically supports 12V and 24V (and sometimes 6V) systems, making it suitable for motorcycles, cars, and heavy-duty vehicles.
-
High Current Output: Capable of delivering up to 30 Amps, which is significantly faster than standard 5A or 10A consumer chargers.
-
OLED/LCD Digital Display: Provides real-time feedback on battery voltage (), charging current (), and remaining battery percentage (%).
-
Zinc Alloy or Aluminum Housing: Built for rugged environments with an industrial-grade metal casing for superior heat dissipation.
Safety Protections ("Full Automatic Protect")
The "Protect" designation refers to several built-in guardrails:
-
Reverse Polarity Protection: The charger will not activate if the red and black clamps are connected to the wrong terminals.
-
Overheat Protection: Includes an internal cooling fan that activates automatically as the unit warms up.
-
Short-Circuit Protection: Shuts down the output instantly if the clamps touch each other or a fault is detected.
-
Low-Voltage Recovery: Can often "pulse" charge older, deeply discharged batteries to break down sulfation and restore capacity.
