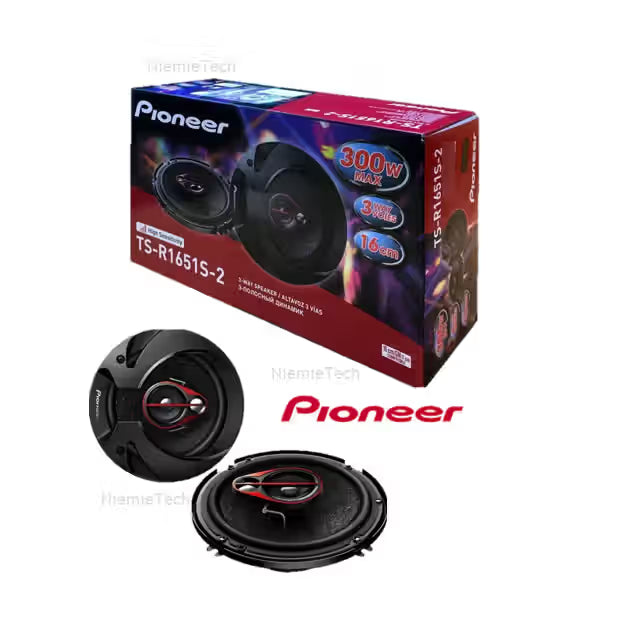

Pioneer 300w TS - R16515-2
$45.00
Performance & Power (Wattage)
| Specification Title | Value | Unit of Measure | Notes/Description |
| Speaker Size | 16 cm (6.3") | Diameter | Standard size for many factory speaker locations. |
| System Type | 3-Way Coaxial | N/A | Features a woofer, midrange, and tweeter integrated together. |
| Max Power Output | 300 | W | Maximum Music Power (Highest rating on the box). |
| RMS Power | 40 | W | Nominal Continuous Power Handling. |
| Impedance | 4 | $\Omega$ (Ohms) | Standard for car audio systems. |
| Frequency Response | 30 Hz – 18 kHz | Hz / kHz | The range of sound the speaker can reproduce. |
| Sensitivity (SPL) | 90 | dB (1W/1m) | Sound Pressure Level (Efficiency). |
| Power Consumption | N/A | N/A | As a passive speaker, consumption is determined by the amplifier/head unit. |
✨ Key Features
-
Design Series: GRADER Series / R-Series (Young, aggressive design aesthetic).
-
Woofer Cone: Mica-reinforced pulp cone for impactful bass and optimized cone rigidity.
-
Suspension: P.F.S.S. (Progressive Flex Suspension System) supports the voice coil for enhanced linearity and clear sound at high input.
- Drivers: Utilizes Piezoelectric PET material for the mid-range and tweeter.
-
Installation: Shallow basket design (42 mm mounting depth) for easy fitment into a wide range of vehicles.
-
Included: Comes as a pair (2 speakers) with grilles and mounting hardware.
