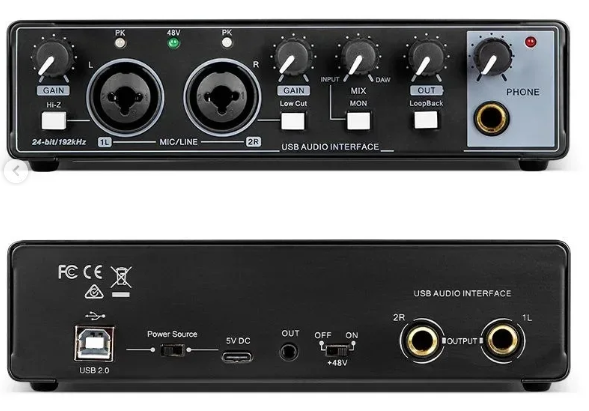

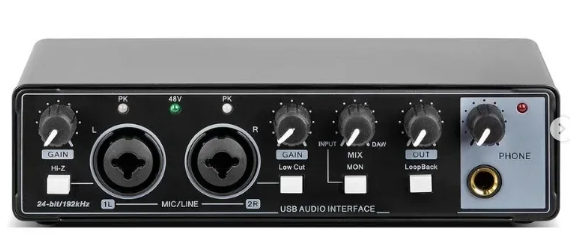

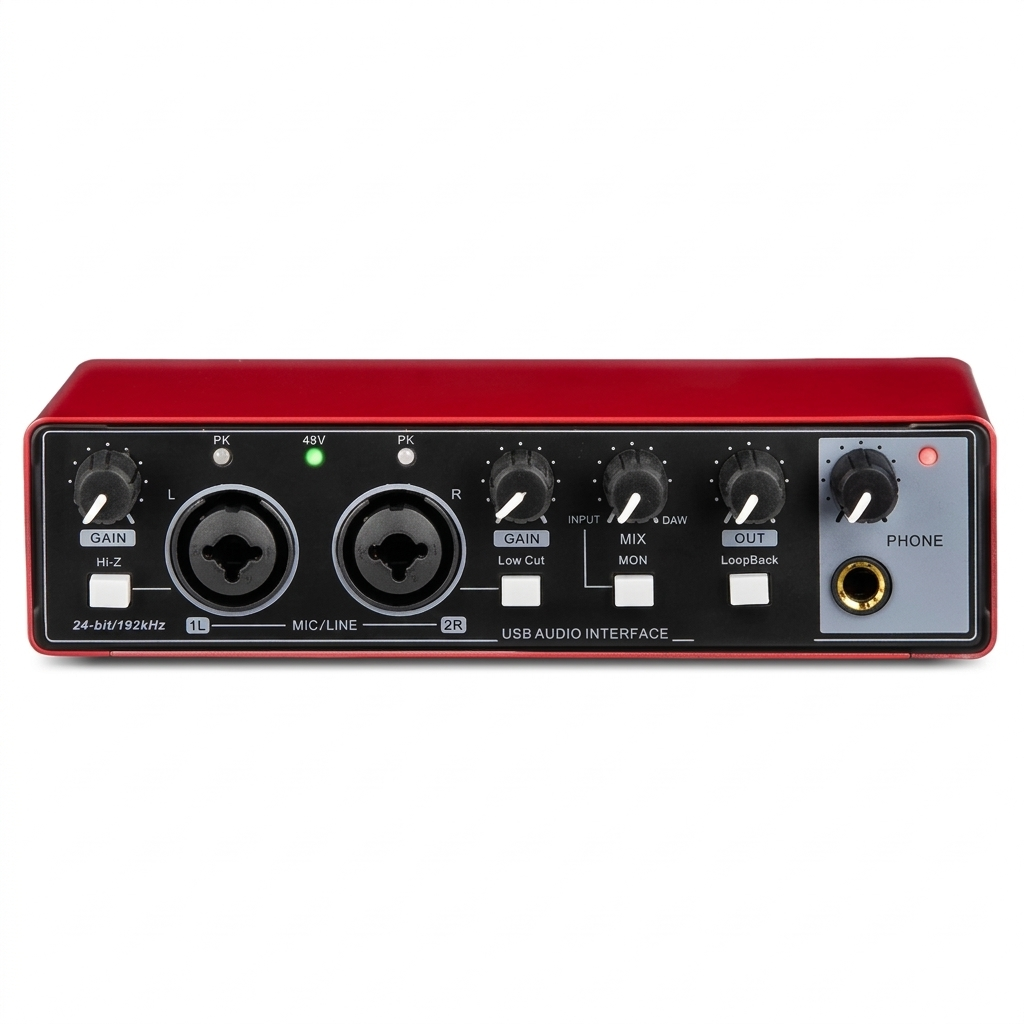

MD22 audio interface

Core Performance & I/O

• Audio Resolution: Delivers professional, studio-quality sound with a high-fidelity 24-bit / 192 kHz resolution.

• Preamps & Inputs: It features two low-noise preamps connected to dual XLR/TRS combo inputs, allowing you to connect both microphones and line-level instruments simultaneously.

• Phantom Power: Supports +48V Phantom Power, which is switchable for using condenser microphones.

• Outputs: Includes two balanced 1/4" TRS main outputs for studio monitors and a dedicated 1/4" headphone output with its own volume control.

• Connectivity: Connects to computers via USB 2.0 or USB 3.0.

✨ Key Features for Content Creation

• Zero-Latency Monitoring: The MIX knob allows blending the live input signal with the computer playback, enabling musicians to hear their performance in real-time without frustrating delay.

• Instrument Ready: Includes a HI-Z switch on at least one input to optimize the impedance for direct connection of electric guitars and basses without distortion.

• Loopback: Features a LoopBack function, which is essential for live streaming and podcasting, as it mixes all input and computer audio signals for a clean stream.

• Low Cut Filter: Includes a Low Cut button (high-pass filter) to remove low-frequency noise and rumble (below 100Hz) from recordings.

• Durability & Power: The interface features a rugged metal casing and can be powered by the computer's USB bus power or an external 5V DC supply.
